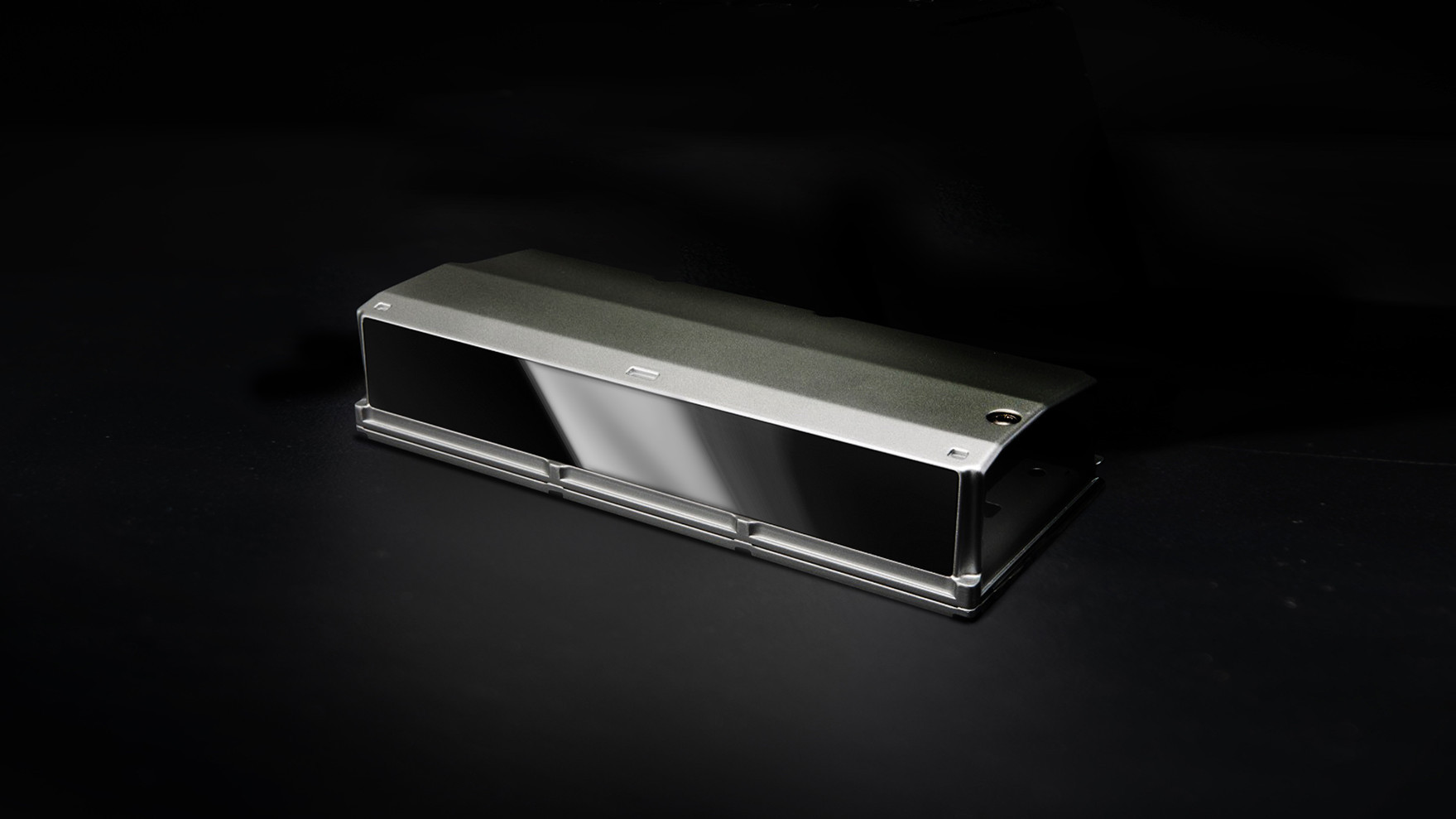

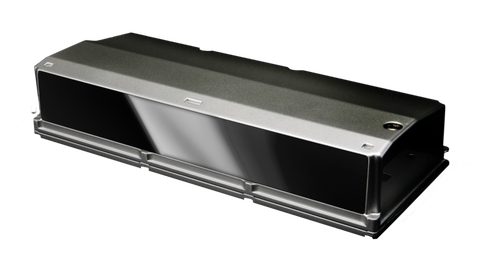

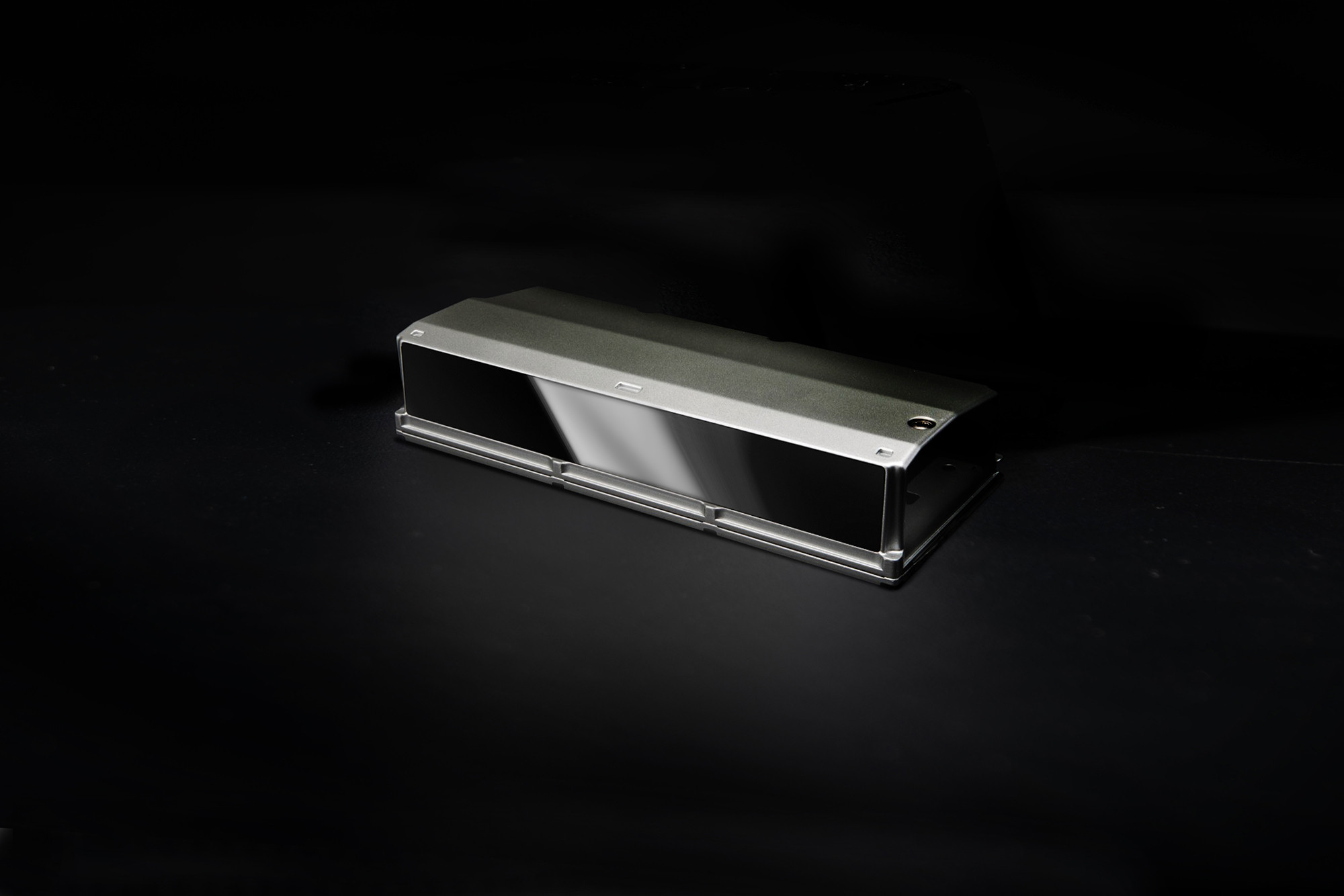

IRIS
Long-Range, High Resolution Perception.
MicroVision’s IRIS is a high performance, automotive grade long range lidar sensor engineered to enable advanced safety and highway speed autonomy. Built from the chip level up, IRIS combines a 1550 nm laser architecture, ultra sensitive receiver technology, and a solid-state scanning approach to deliver long distance, high confi dence perception in a compact form factor designed for series production and seamless vehicle integration.
Key specs
| Technology | Laser | Optics | Specifications |
|---|---|
| Field of View (H x V) | 120° x 26° |
| Maximum Instrumented Range | 280 m |
| Minimum Instrumented Range | 2 m |
| Range Precision (1 σ, 50 m, 10% R) | 4 cm |
| Frame Rate | 1 Hz – 30 Hz, SW configurable |
| Laser Product Class | Class 1 per IEC / EN 60825-1: 2014 |
| Dimensions (w, d, h) without mounting brackets | 270 x 106 x 54 mm |
| Ingress Protection | IP67 listed |
key features
Resolution at Range
Ultra Sensitive Receiver Technology to deliver Long Distance, High Confidence Sensing.
Compact Design
Engineered for precision and reliability, and designed for seamless vehicle integration.
Robust Sensor
Environmental Protection: IP67 listed
High Resolution
Ultra-Sensitive InGaAs Receiver & Custom ASIC for Reliable Detection of Small, Dark, and Low-Reflectance Objects.
Low Latency
Enabling autonomous systems to make quicker decisions for safer outcomes.
Full lidar solution
Complements our short-range sensor to provide OEMs with a complete, integrated lidar coverage suite.Tri-Lidar Architecture
With the Tri-Lidar Architecture, MicroVision provides the ultimate cost-effective and seamlessly integrated OEM solution. The concept integrates multiple lidars – for example two short-range (MOVIA™ S) and one long-range (e.g. IRIS) – into a unified, open-platform design.
The Tri-Lidar Architecture enables a wide range of features from level 2+ ADAS up to fully autonomous driving (AD).
Advantages:
- Highly cost effective
- Radically reduced complexity
- Significantly lower power consumption
- Dramatically enhanced near-field performance
- Open-platform design offers maximum flexibility - radar and camera sensors also possible
- Customizable hardware and software solution
IRIS for your Industry
Unlocking safer mobility with compact, cost-effective lidar solutions.
Cost-effective, durable, and application-ready lidar solutions.
Compact, lightweight lidar solutions enabling real-time mapping and autonomous navigation.
