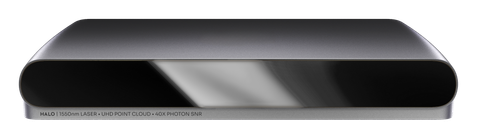

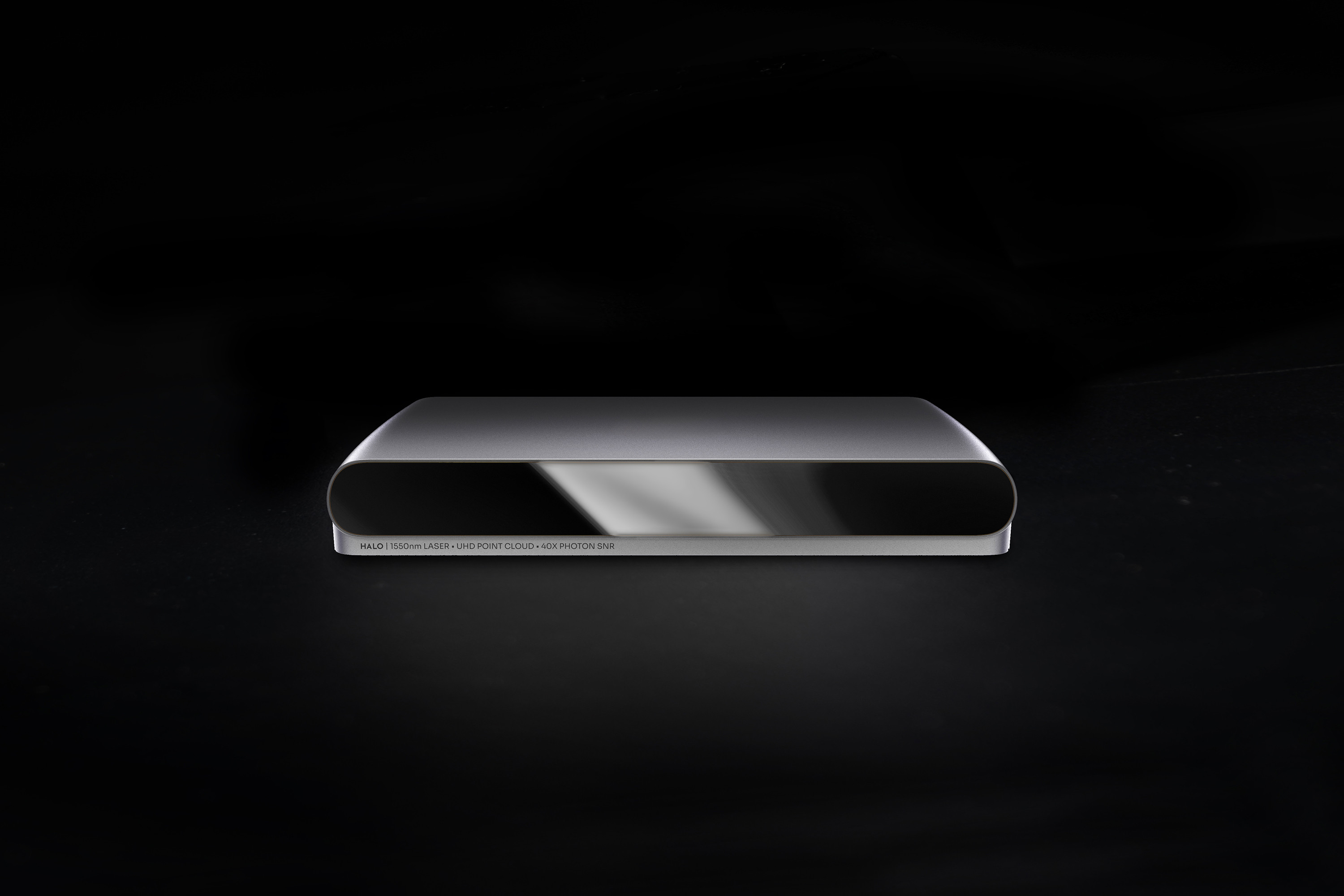

HALO
High Performance. Ultra Thin.
HALO - engineered to deliver breakthrough performance, streamlined integration, and scalable production suitable for mainstream commercial vehicles and industrial applications. Designed from the chip level up, MicroVision®'s HALO combines ultra-thin form factor with industry-leading sensing capabilities to enhance safety and advance assisted-driving features. Its compact architecture enables seamless integration while maintaining high precision in a wide range of environmental conditions.
Key specs
| Technology | Laser | Optics | Specifications |
|---|---|
| Field of View (H x V) | 120° x 39° (full radiometry +10°/-16°)* |
| Maximum Instrumented Range | 312 m |
| Minimum Instrumented Range | 0.5 m (existence indicator < 0.5 m) |
| Range Precision (1 σ, 50 m, 10% R) | < 3 cm |
| Frame Rate | 1 Hz – 30 Hz ** |
| Laser Product Class | Class 1 per IEC / EN 60825-1: 2014 |
| Dimensions (w, d, h) without mounting brackets | 180 x 110 x 25 mm |
| Ingress Protection | IP67 + IP69K |
* FoV, resolution, and frame rate are software defined within and between frames.
** Automotive and non-automotive hardware variants.
key Features
Long-Range, High-Resolution Sensing
Superior Object Detection Performance and High Range Capability.
Compact Design
Engineered for precision and reliability, and designed for seamless vehicle integration.
Robust Sensor
IP67 housing + IP69K window
Low Power Consumption
Energy-efficient design for reduced power consumption.
Low Latency
Enabling autonomous systems to make quicker decisions for safer outcomes.
Full lidar solution
Complements our short-range sensor to provide OEMs with a complete, integrated lidar coverage suite.Tri-Lidar Architecture
With the Tri-Lidar Architecture, MicroVision provides the ultimate cost-effective and seamlessly integrated OEM solution. The concept integrates multiple lidars – for example two short-range (MOVIA™ S) and one long-range (e.g. HALO) – into a unified, open-platform design.
The Tri-Lidar Architecture enables a wide range of features from level 2+ ADAS up to fully autonomous driving (AD).
Advantages:
- Highly cost effective
- Radically reduced complexity
- Significantly lower power consumption
- Dramatically enhanced near-field performance
- Open-platform design offers maximum flexibility - radar and camera sensors also possible
- Customizable hardware and software solution
HALO for your Industry
Unlocking safer mobility with compact, cost-effective lidar solutions.
Cost-effective, durable, and application-ready lidar solutions.
Compact, lightweight lidar solutions enabling real-time mapping and autonomous navigation.
