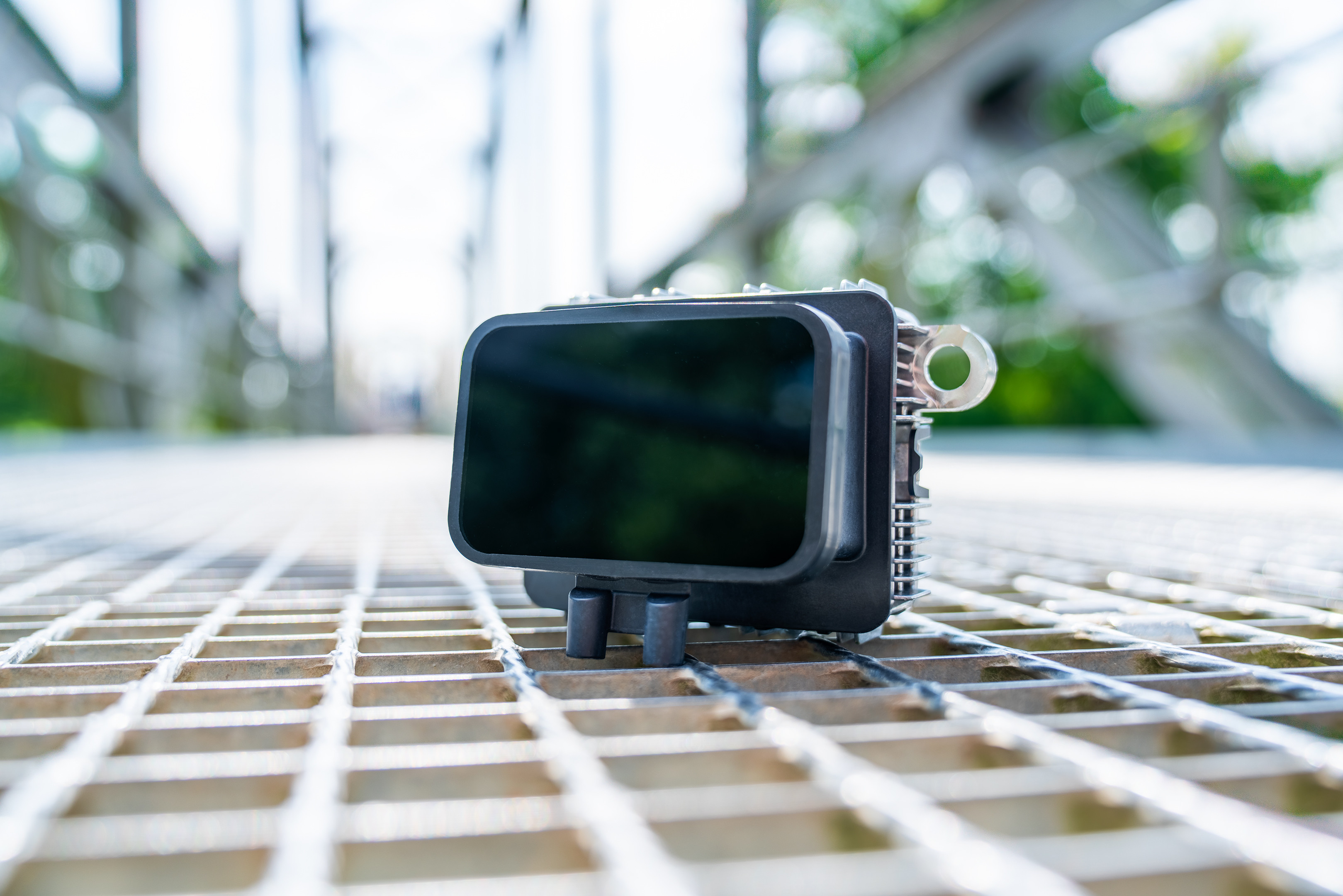

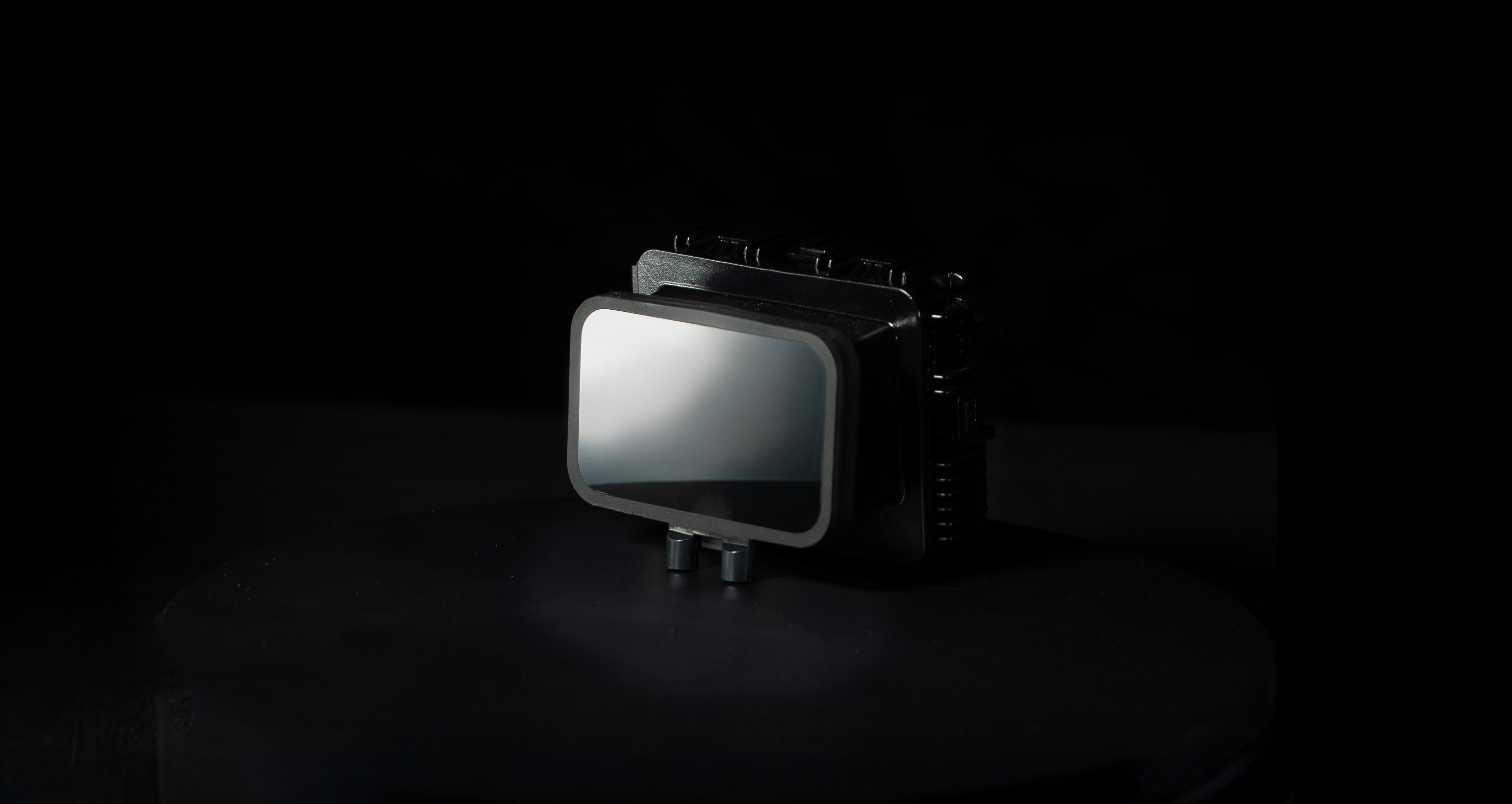

MOVIA™ L
Robust 3D solid-state lidar for industrial and automotive applications
No moving parts
4D Output:
Point cloud & intensity image
Optional Onboard Software
50 G shock load
Class 1 laser product
High resolution
Protected from environmental influences
Low power consumption
Key Features
- Robust and reliable: 50 G shock load and operational lifetime up to 25,000 hours
- Pure solid-state solution: no moving parts
- Transceiver resolution of 128 columns x 80 rows
- Sequential flash scanning captures environment thousands of times per frame
- Adverse weather performance due to multi-echo capability

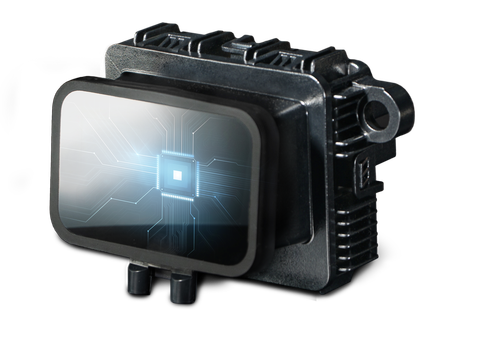

- Optional with integrated perception software:
- Ground detection and point cloud annotations
- Object/people detection and tracking
- 3D zone detection
MOVIA™ L
Warehouse
- Integration in ADAS and fully automated forklifts
- Configurable 3D zone detection
- Objects recognition & collision avoidance
MOVIA™ L
Agriculture
- Crop edge detection
- Harvest volume estimation
- Swath guidance
MOVIA™ L
Mining
- Obstacle detection
- Ground mapping
- 3D modeling
Technical Data

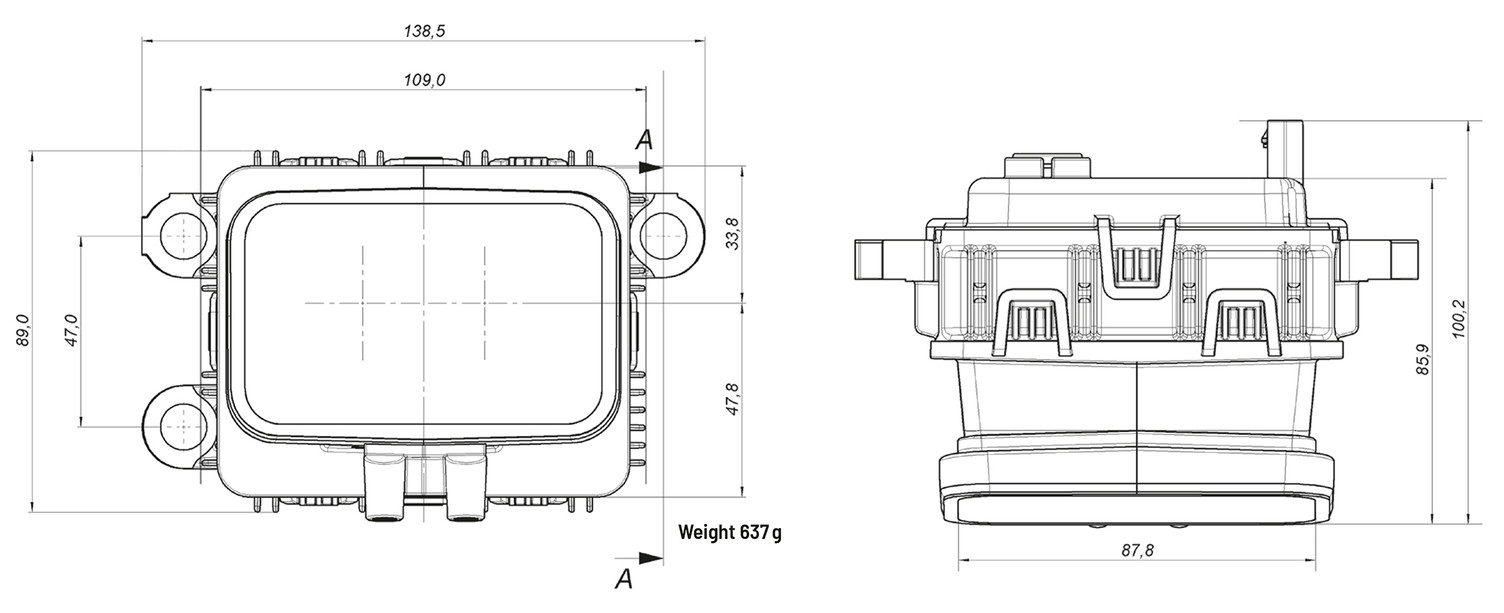

MOVIA™ L is available with 60-degree or 120-degree optics. The fully solid-state lidar sensor features a compact, light-weight design, ensuring seamless integration into mobile units.
Technology / Laser / Optical | Short range (60°) | Near range (120°) |
---|---|---|
Max. field of view (h x v) | 60° x 37.5° | 120° x 75° |
Max. angular resolution (h x v) | 0.23° x 0.38° | 0.47° x 0.75° |
measurement range | 0.15m - 80 m | 0.15 m - 40 m |
Typical Power consumption | 7W | 7W |
Ingress Protection | IP6K9K | IP6K9K |
Operating Temperature | -40 °C to +85° C | -40 °C to +85 °C |
