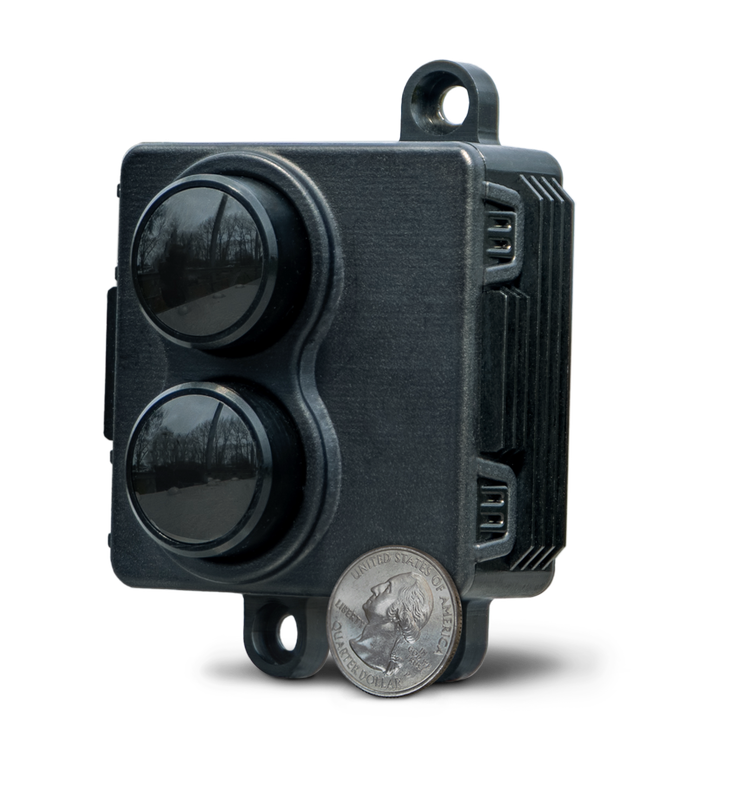

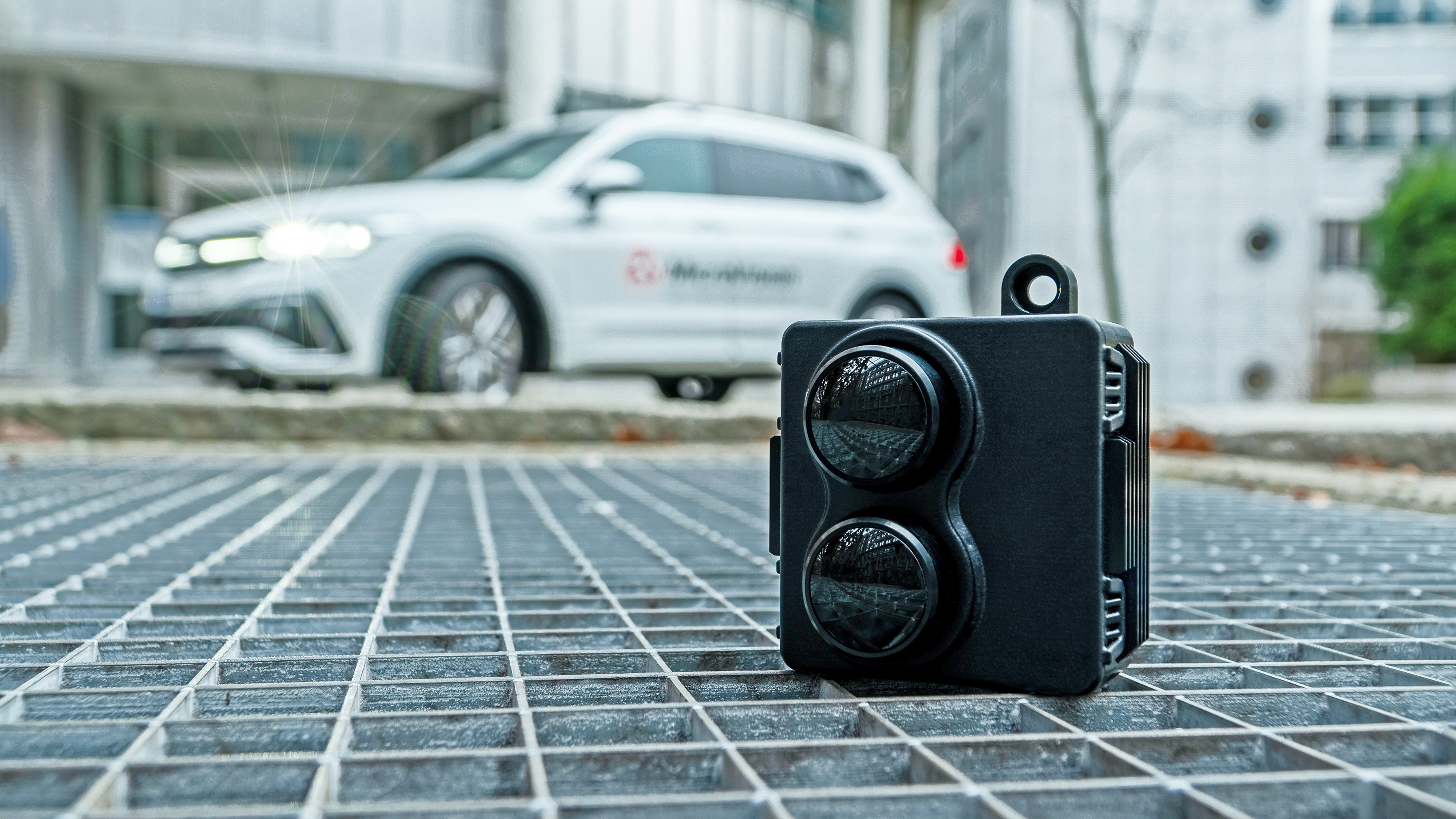

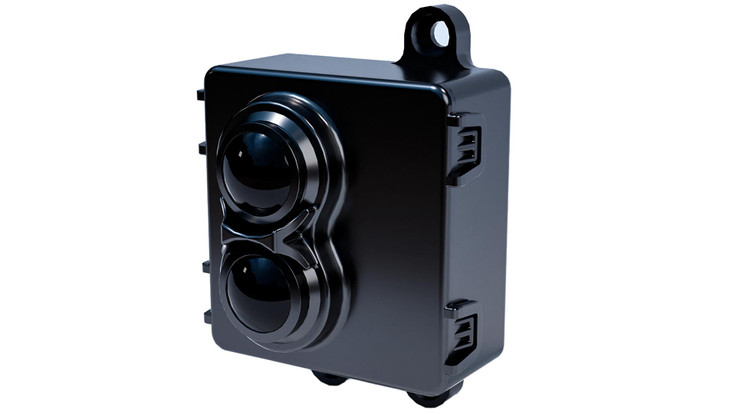

MOVIA™ S
180° lidar performance in a compact and lightweight design for the most demanding short-range applications
No moving parts
4D Output:
Point cloud & intensity image
Class 1 laser product
High resolution
Protected from environmental influences
Low power consumption
Compact design
Key Features
- 180° field of view and small housing
- Developed according to automotive-grade standards
- Pure solid-state solution
- Robust and reliable: no moving parts
- Transceiver resolution of 256 columns x 192 rows
- Sequential flash scanning captures environment thousands of times per frame
- Adverse weather performance due to multi-echo capability
- Multi feature signal processing
- Easy integration into design-critical components, such as bumpers, thanks to small optical window
Technical Data
| Technology / Laser / Optical | MOVIA™ S |
|---|---|
| Max. field of view (h x v) | 180° x 135° |
| Angular resolution (h x v) | 0.7° x 0.7° |
| Frame rate | 15 Hz |
| Unambiguous range | 50 m |

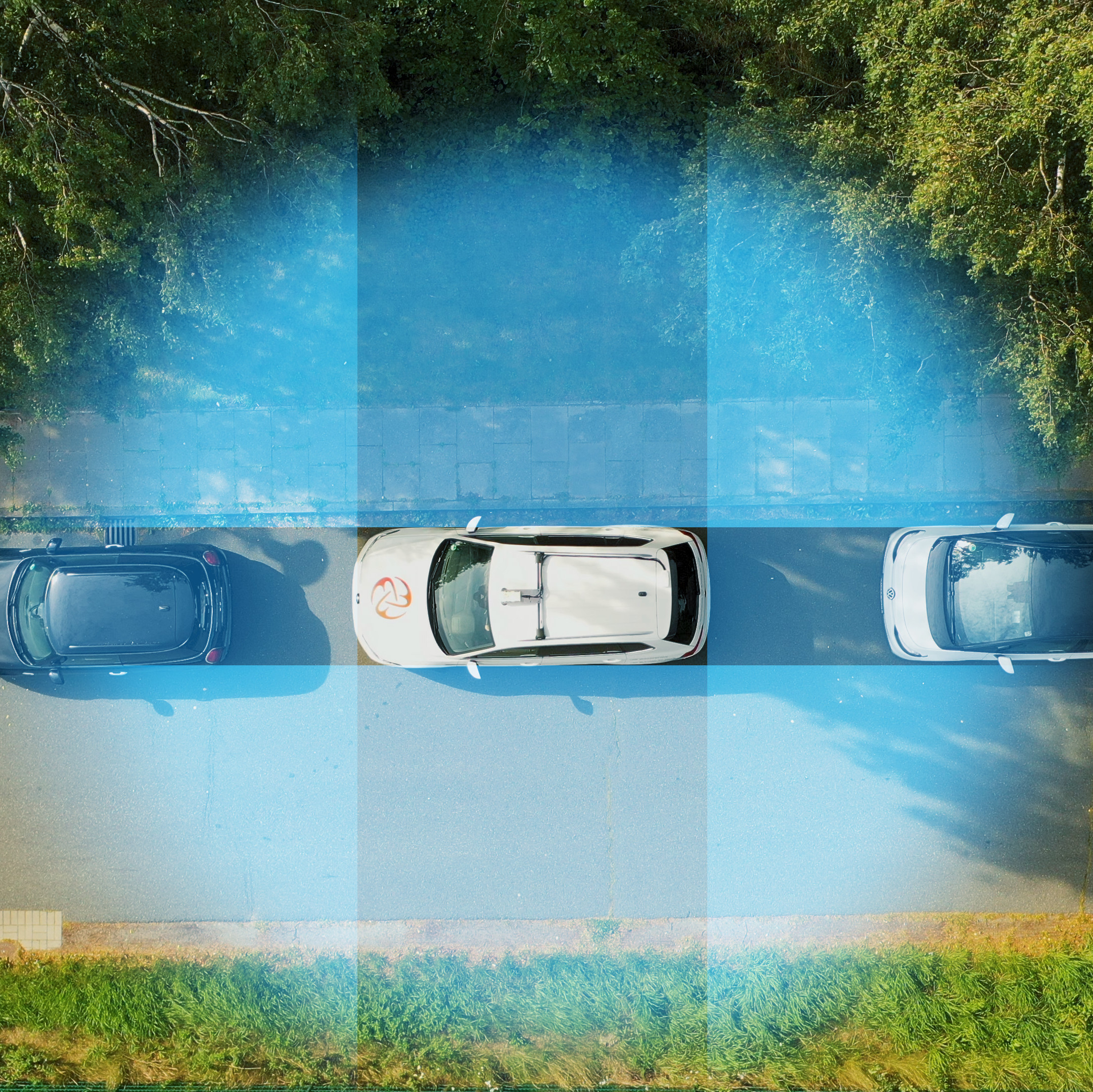

Field of view

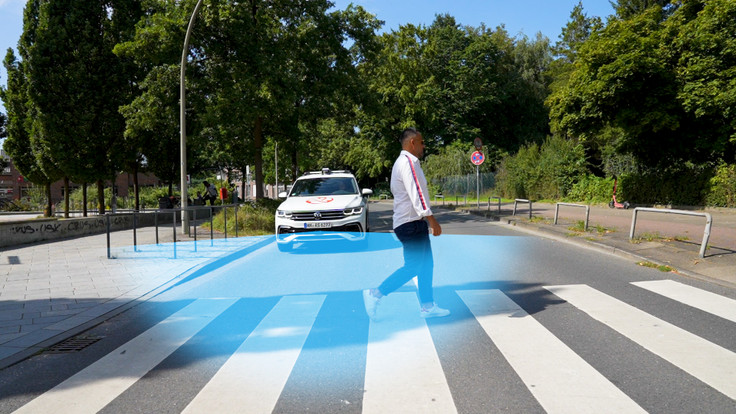

MOVIA™ S features a 180 degree optic, allowing a very wide field of view to advance autonomous driving in urban scenarios or other demanding use cases.

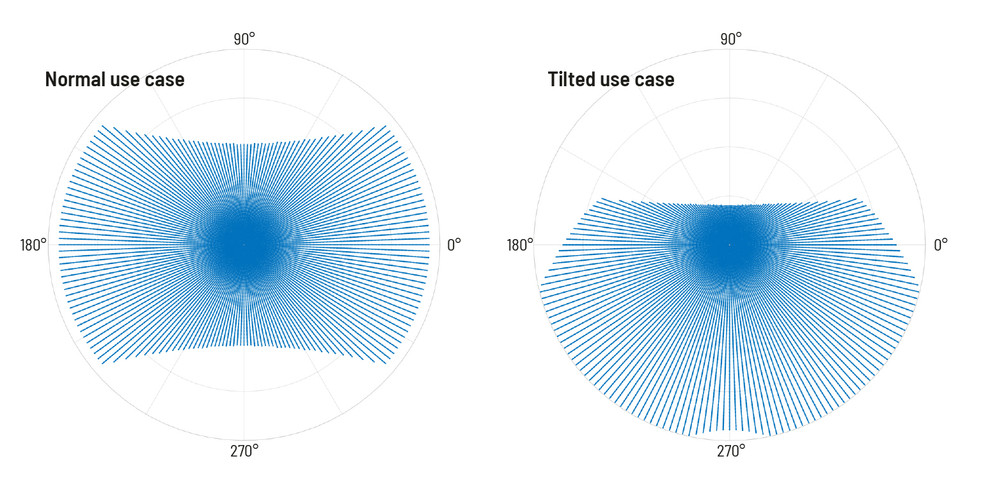

Depending on the use case, MOVIA™ S allows to tilt the vertical field of view in the range of ±22° without changing the tilt of the sensor.
MOVIA™ s for various Industries
Enhanced driving experience with mature lidar solutions.

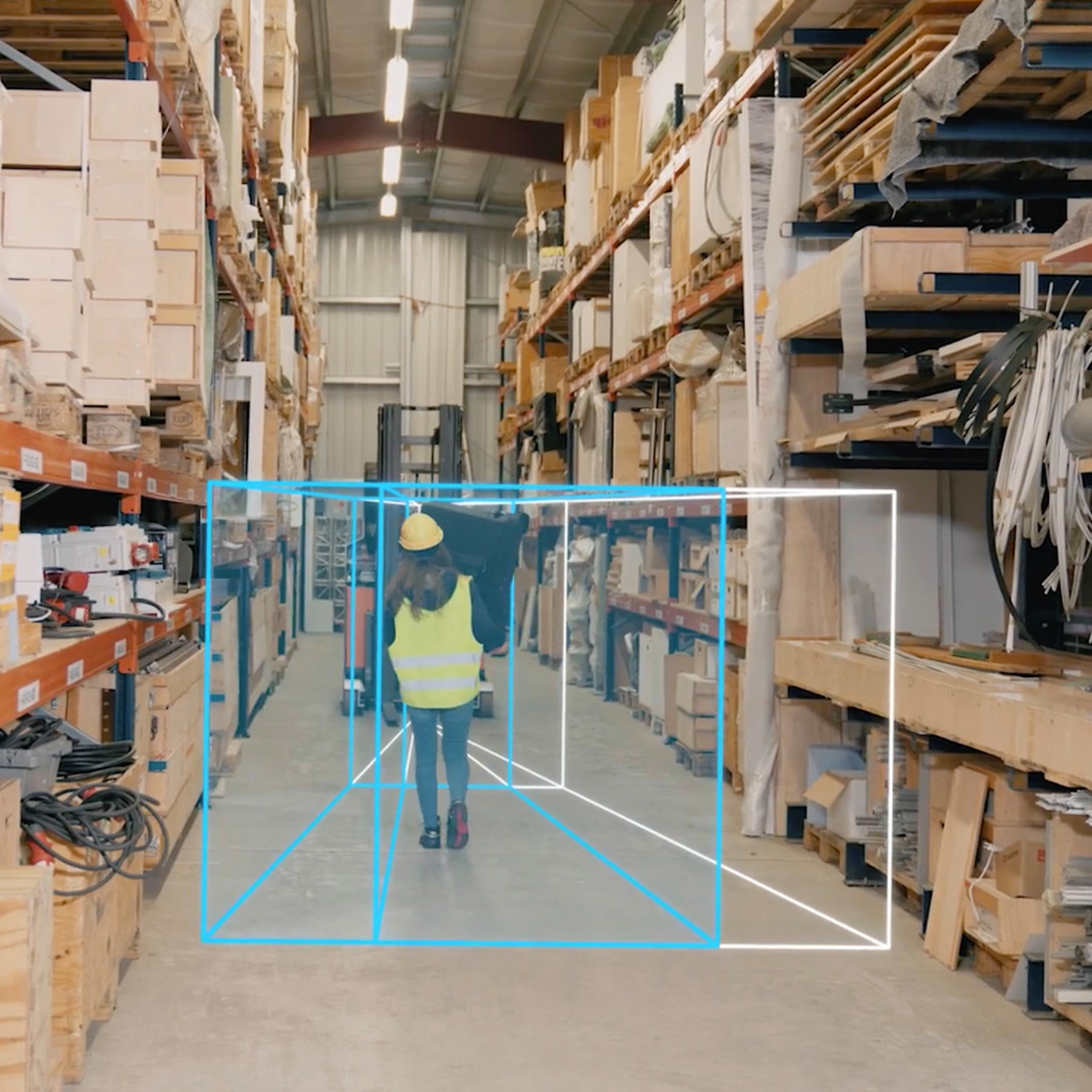

Peak efficiency with configurable 3D zone detection.
Collision avoidance in complex environments with advanced lidar functions.
High precision with cost-effective technology upgrades for harsh environments.
Safety and efficiency improvement while overcoming challenging conditions.
